Five Steps in Setting Up and Tearing Down an IPsec Site-to-Site VPN Using IKEv1 by Anthony Sequeira

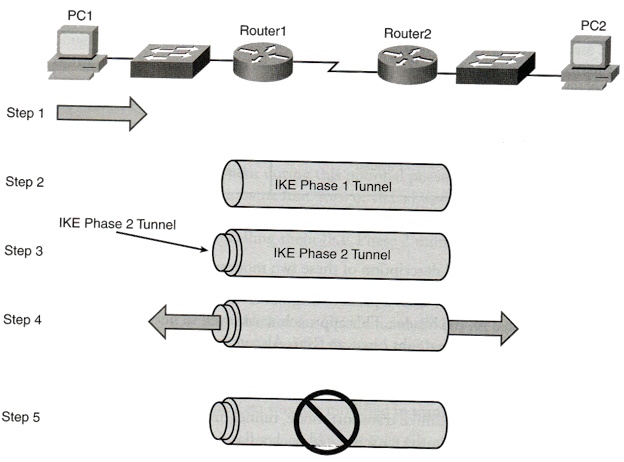

The process of establishing, maintaining, and tearing down an IPsec site-to-site VPN consists of five primary steps, which are illustrated in figure 19.4 and described in detail in the list that follows.

Step 1. PC1 sends traffic destined for PC2. Router 1 classifies the traffic as "interesting" traffic, and this classification initiates the creation of an IPsec tunnel.

Step 2. Router1 and Router2 negotiate an SA (security association) used to form an IKE (Internet Key exchange) Phase 1 tunnel, which is also known as an ISAKMP (Internet Security Association and Key Management Protocol) tunnel.

Step 3. Within the protection of the IKE Phase 1 tunnel, an IKE Phase 2 tunnel is negotiated and set up. An IKE Phase 2 tunnel is also known as an IPsec tunnel.

Step 4. After the IPsec tunnel is established, interesting traffic (for example traffic classified by an ACL) flows through the protected IPsec tunnel. Note that traffic not deemed interesting can still be sent between PC1 and PC2. However. the noninteresting traffic outside the protection of the IPsec tunnel.

Step 5. After no interesting traffic is seen for a specified amount of time, the IPsec tunnel is torn down and IPsec SA is deleted.

This example describes an IPsec site-to-site VPN, but the procedure is similar for a client-to-site VPN. IPsec is typically deployed using IKEv1, with its two phases (Phase 1 and Phase 2).
