Network Broadcast Storms by Anthony Sequeira

When a switch receives a broadcast frame (that is, a frame destined for MAC address FFFF.FFFF.FFFF), the switch floods the frame out all switch ports other than the port on which the frame was received. Because a layer 2 frame does not have a TTL field, a broadcast frame endlessly circulates through the Layer 2 topology, consuming resources on both switches and attached devices (for example, user PCs).

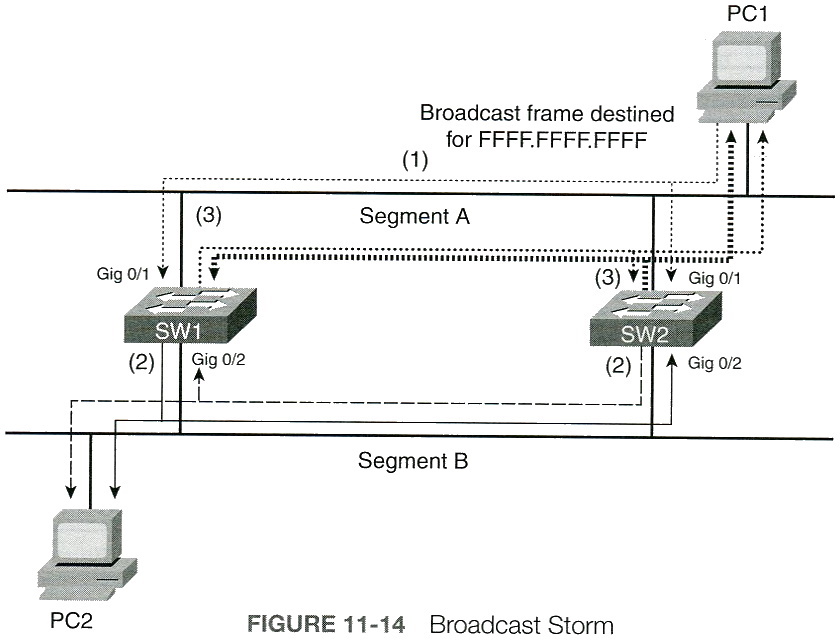

Figure 11-14 and the following list illustrates how a broadcast storm can form in a Layer 2 topology when STP (Spanning Tree Protocol) is not functioning correctly:

Step 1.

PC1 sends a broadcast frame on to segment A, and the frame enters each switch on port Gig 0/1.

Step 2.

Both switches flood a copy of the broadcast frame out their Gig 0/2 ports (that is, on to segment B), causing PC2 to receive two copies of the broadcast frame.

Step 3.

Both switches receive a copy of the broadcast frame on their Gig 0/2 ports (that is, on to segment B) and flood the frame out their Gig 0/1 ports (that is, on to segment A), causing PC1 to receive two copies of the broadcast frame.

STP prevents Layer 2 loops - which might result in a broadcast storm or corruption of a switch's MAC address table - from occurring in a network.
