For troubleshooting purposes, you might want to analyze packets flowing over a network. To capture packets (that is, store copies of packets on a local hard drive) for analysis, you could attach a network sniffer to a hub. Because a hub sends bits received on one port out all other ports, the attached network sniffer sees all traffic entering the hub.

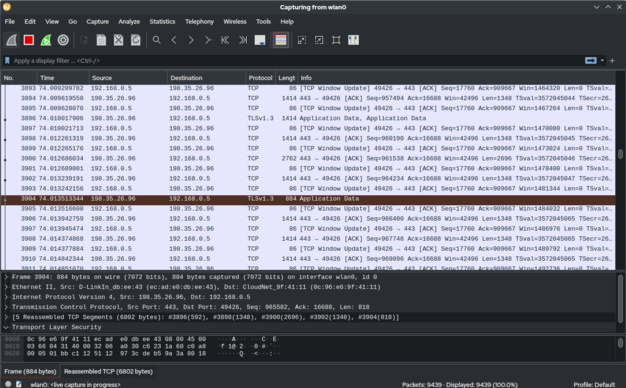

Several standalone network sniffers are available. However, a low-cost way to perform packet capture and analysis is to use software such as wireshark, as shown in Figure 11_21.
A challenge arises, however, if you connect a network sniffer (for example, a laptop running the Wireshark software) to a switch port rather than to a hub port. Because a switch, by design, forwards frames out ports containing the frames' destination addresses, a network sniffer attached to one port would not see traffic destined for a device connected to a different port.

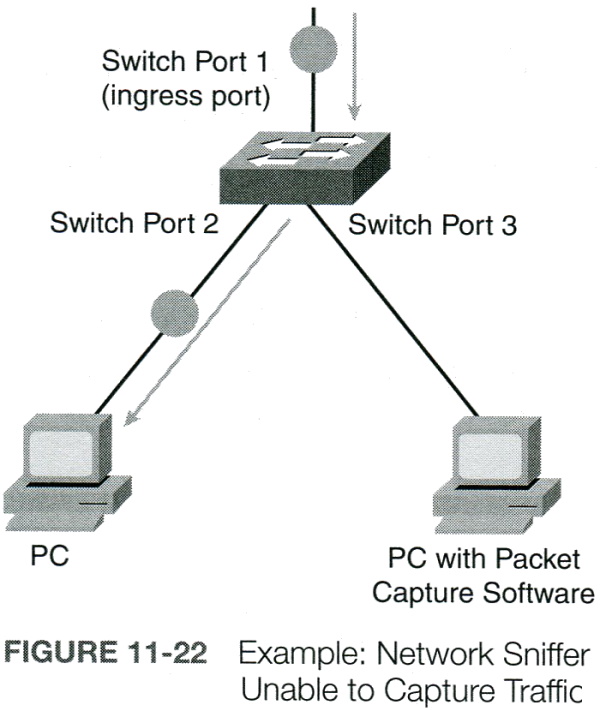

For example, in Figure 11-22, traffic enters a switch on port 1 and, based on the destination MAC address, exits via port 2. However, a network sniffer is connected to port 3 and is unable to see (and therefore capture) the traffic flowing between port 1 and 2.

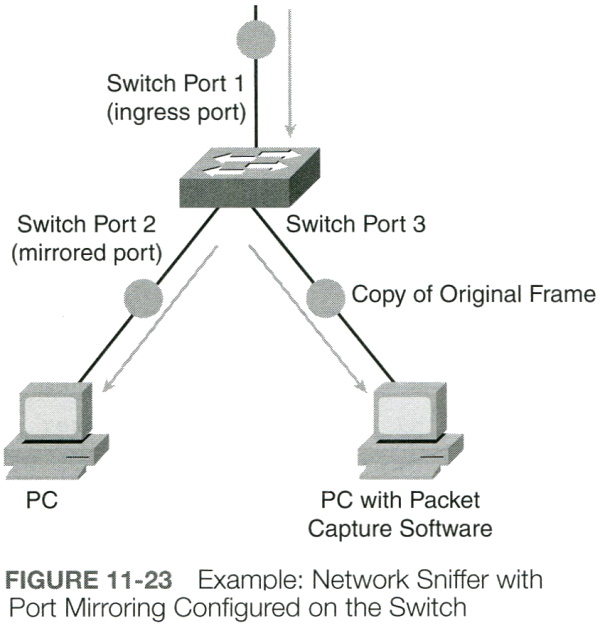

Fortunately, some switches support a port mirroring feature, which makes a copy of traffic seen on one port and sends that duplicated traffic out another port (to which a network sniffer could be attached). As shown in Figure 11-23, this switch is configured to mirror traffic on port 2 to port 3, allowing a network sniffer to capture the packets that need to be analyzed. Depending on the switch, locally captured traffic could be forwarded to a remote destination for centralized analysis of that traffic.
