X.25 and Frame Relay Overview
Frame Relay is one of the most popular WAN services out there in the real world despite
it also being one of the oldest WAN technologies available and there is a very good reason
for the continuing popularity of Frame-relay that is down one simple factor which is cost.
Anyone building a WAN will generally consider Frame-relay as a viable connectivity option due
to the cost alone, WAN's are not cheap by any margin so having Frame-Relay available to connect
your different sites together is nice to know.
FR (Frame-Relay) was born out of an older technology called X.25 which even though is
older than FR is still in use in certain parts of the world. X.25 was a very robust protocol
that had solid error recovery features which were very useful when the network infrastructure
was prone to causing transmission errors on the sent data, one major drawback to X.25 as that
due to the constant error recovery features it was very slow.
As time progressed technology improved, at the same there was a requirement for faster
transmission speeds from the WAN providers, this lead to the creation of Frame-Relay which
on closer inspection operates in much the same way as X.25 but with out the extensive error
detection and correction carried out by X.25.

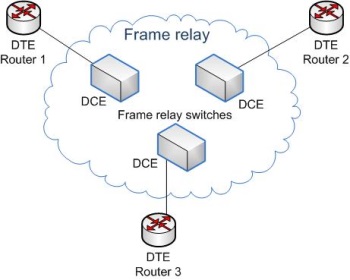

By default, Frame Relay is classified as a non-broadcast multi-access (NBMA) network,
meaning it doesn't send any broadcasts like RIP updates across the network. No worries-I'm
not going leave you hanging. We'll get into this more soon.
Frame relay is a fairly simple protocol to get to grips with, and is taught in the Cisco
CCNA course, having said that setting up this technology and configuring it on the router is
considerably more complex than setting up say PPP or HDLC which require one command on the
serial interface and you're done.
In this technology we need to know the way in which the protocol it's self functions,
we need to learn a new addressing scheme and new way in which the Layer 2 addresses are resolved
even though frame-relay does not allow address resolution traffic to pass from one site to
another like it would in an Ethernet environment.
There are also many terms that you need to learn in the CCNA regarding this WAN technology,
you have to know the difference between a PVC and SVC, and the function of the three types
of Local Management frames (LMI's).
