VPN (Virtual Private Network) headend or Concentrator by Anthony Sequeira

Companies with locations spread across multiple sites often require secure communications between those sites. One option is to purchase multiple WAN connections to interconnect those sites. Sometimes, however, a more cost-effective option is to create secure connections through an untrusted network, such as the Internet. Such a secure tunnel is called a virtual private network (VPN). Depending on the VPN technology being used, the devices that terminate the ends of a VPN tunnel might be required to perform heavy processing. For example, consider a company headquarters location with VPN connections to each of 100 remote sites. The device at theh headquarters terminating these VPN tunnels might have to perform encryption and authentication for each tunnel resulting in a heavy processor burden on that device.

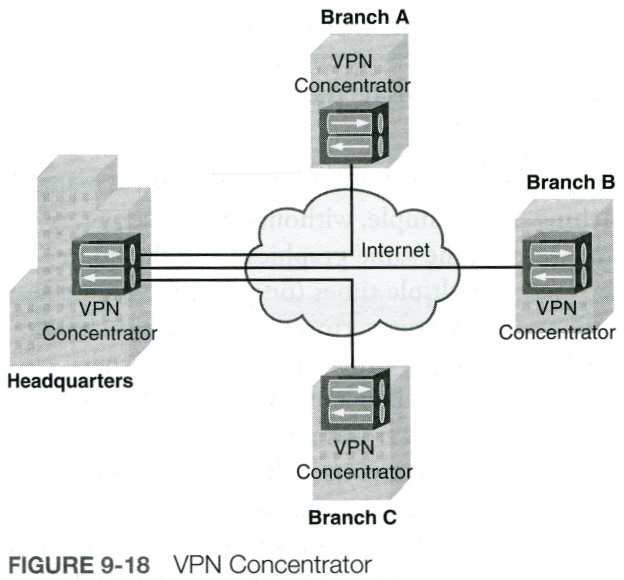

Although several router models can terminate a VPN circuit, a dedicated device, called a VPN headend, or VPN concentrator, can be used instead. A VPN headend device performs the processor-intensive process required to terminate multiple VPN tunnels. Figure 9-18 shows a sample VPN topology, with a VPN concentrator at each corporate location.

The term encryption refers to the capability of a device to scramble data from a sender in such a way that the data can be unscrambled by the receiver but not by any other party that might intercept the data. Because a VPN concentrator is able to encrypt data, it is considered to belong to a class of devices called encryption devices, which are devices (such as routers, firewalls, and VPN concentrators) capable of participating in an encryption session.
