Levels and Layers of Abstraction in a Linux System by Brian Ward

Using abstraction to split computing systems into components makes things easier to understand, but it doesn't work without organization. We arrange components into layers or levels. A layer or level is a classification (or grouping) of a component according to where that component sits between the user and the hardware. Web browsers, games, and such sit at the top layer; at the bottom layer we have the memory in the computer hardware - the 0s and 1s. The operating system occupies most of the layers in between.

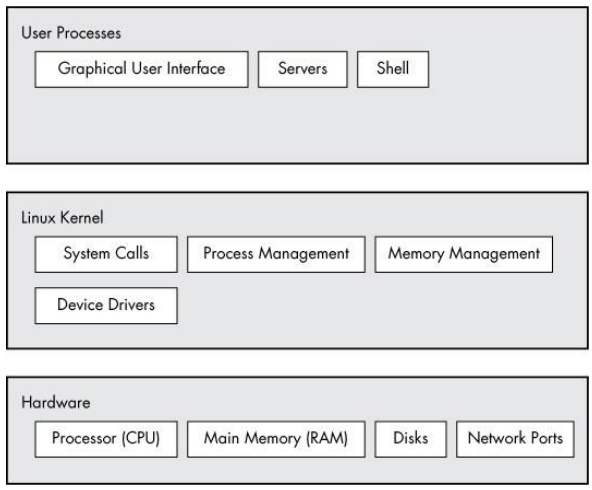

Figure 1-1. General Linux system organization

A Linux system has three main levels. Figure 1-1 shows these levels and some of the components inside each level. The hardware is at the base. Hardware includes the memory as well as one or more central processing units (CPUs) to perform computation and to read from and write to memory. Devices such as disks and network interfaces are also part of the hardware.

The next level up is the kernel, which is the core of the operating system. The kernel is software residing in memory that tells the CPU what to do. The kernel manages the hardware and acts primarily as an interface between the hardware and any running program.

Processes - the running programs that the kernel manages - collectively make up the system's upper level, called user space. (A more specific term for process is user process, regardless of whether a user directly interacts with the process. For example, all web servers run as user processes.)

There is a critical difference between the ways that the kernel and user processes run: The kernel runs in kernel mode, and the user processes run in user mode. Code running in kernel mode has unrestricted access to the processor and main memory. This is a powerful but dangerous privilege that allows a kernel process to easily crash the entire system. The area that only the kernel can access is called kernel space.

User mode, in comparison, restricts access to a (usually quite small) subset of memory and safe CPU operations. User space refers to the parts of main memory that the user processes can access. If a process makes a mistake and crashes, the consequences are limited and can be cleaned up by the kernel. This means that if your web browser crashes, it probably won't take down the scientific computation that you've been running in the background for days.

In theory, a user process gone haywire can't cause serious damage to the rest of the system. In reality, it depends on what you consider "serious damage," as well as the particular privileges of the process, because some processes are allowed to do more than others. For example, can a user process completely wreck the data on a disk? With the correct permissions, yes - and you may consider this to be fairly dangerous. There are safeguards to prevent this, however, and most processes simply aren't allowed to wreak havoc in this manner.
