Installing An Optical Drive Guide

DVD RW

Selecting Fast, Inexpensive Optical Drives

To the hi-tech newcomer, the term optical drive may not mean very much. Simply put, the optical drives read CDs and DVDs. Virtually every modern PC contains an optical drive, used as a secondary storage medium for computers. Information is stored on high-density disks in the form of tiny pits "read" by laser. The term refers to the general category of disk drives that read information optically, using a low-powered laser.

CD-ROM drives were the first optical units commonly found on PCs; they began as novelties for high-end users and grew in popularity as they dropped in price and increased in performance, until the point arrived where they were mandatory equipment on any new PC system.

Optical drives are storage devices and part of the storage subsystem. They usually interface either through the standard IDE/ATA controller ports on the motherboard, or a SCSI interface host adapter.

The optical drive in a system is an important factor in the PC's ability to install and run software, since most software is distributed on optical disks. In the case of writeable CD drives, they also are often the only real backup devices in the PC.

Related Components: Optical drives are most closely related to the sound card, to which they usually have a physical connection of some kind. Optical drives are also kin to the motherboard, since they usually send data to the system through the motherboard. When you purchase an optical drive you want to match the interface that has been chosen for the hard disk drive(s) in the system, usually IDE/ATA or SCSI.

Today we have not just CD-ROM drives but their younger and higher-capacity siblings, DVD drives. We also have writeable and rewriteable CD-ROM drives, called CD-R and CD-RW respectively. These expand the capabilities of optical drives by letting you actually write to CD-ROM media.

Adding a fast optical drive will increase your PC's flexibility and even if you're on a budget, drives that read and burn any format won't put you in the poorhouse. You can get it all done with only one drive. No worries whether your drive supports DVD+RW or DVD-RW - for less than 100 bucks you can get an 8X DVD combo drive that writes to all major formats of rewritable DVD.

The Need for Speed - How Much is Optimal?

Almost all DVD burners are relatively fast. Even second-tier performers can write an entire disk in less than 10 minutes. Plus, CD burning speeds are fast enough that the difference between 48x and 52x isn't much. In other words, if you are on a budget there is no reason to pay big bucks for a 12x or 16x DVD burner or insist on buying the fastest CD-RW drives you can find.

8X versus 12X - Consider the difference in Storage

What's 12 inches in diameter and can hold 8.5 GB of data? A dual-layer DVD disk. Most stand-alone DVD players can play the dual-layer discs that these drives burn, boosting the amount of video that will fit on one disc. You'll pay a small price premium for early dual-layer drives, and compatible media may be hard to find at first. Also, writing to dual-layer discs is slower than writing to single-layer. - 2.4x for the double, as opposed to 8X, 12X or 16X for the single layer. Good idea to wait until the prices of drives and media fall before switching to dual-layer.

Adding an Extra Drive to an Older PC

One Cable - Two Drives/ Defining the Master and Slave Relationship

Unfortunately, this process often requires a bit more technology than merely plugging in. Older PCs use parallel ATA technology - 2 drives share one cable (known as a channel, and most PCs come with at least two IDE channels for a maximum of 4 drives. Setting a jumper designates each drive as either a master or a slave, which permits a single cable to connect two drives to one IDE channel.

The jumper settings for each designation are usually labeled on the drive itself. A few simple rules should guide your configuration choices. If possible, each drive should sit on its own IDE channel configured as a master drive. If you have two drives on one channel always make the faster drive the master drive.

For example, suppose that you wanted to add a second hard drive and a DVD burner to a PC equipped with one hard drive and one CD-RW drive. IN that case, you would want to set the new, faster hard drive as master on the primary IDE channel. Your older hard drive should be the slave drive on the primary channel, with the two optical drives as master and slave on the secondary channel.

The X" Rated Component

Optical drives are normally specified with an "X" rating, intended to represent the speed of the drive. For example, a CD-ROM drive may be specified as "40X", or a DVD drive as "6X". This is supposed to mean that these units operate at 40 times and 6 times the speed of the first CD-ROM and DVD drives, respectively.

These "X" ratings do indicate approximate drive speed, but they have become "magic numbers" and don't really represent as much of the performance picture as you might think. See the discussion of "Magic Numbers" below.

(Note that the CD and DVD standards are different; a 1X DVD drive actually has throughput of about eight times that of a 1X CD-ROM drive.)

Installation - the Final Step

Installing your optical drives is an easy process that requires a bit of attention to detail. Here's an easy-to-follow-installation guide:

Gather up all your drives. Many cases use removable drive rails or cages to house drives. Use the included screws to attach your drives to the rails or cage, and slide them into the case.

For externally accessible drives such as a DVD recorder, you can save time by installing one drive rail and sliding the drive in for a test fitting to make sure that its front is flush with the case. When the drives are installed, connect power and data cables to each one. Parallel ATA drives use wide, flat data cables that can be installed only in the correct way.

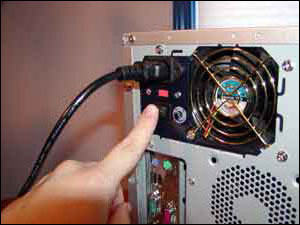

Turn off the power switch

1. First, if your PC is running, shut it down and turn off the power switch.

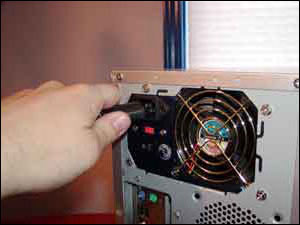

Remove the power cord

2. Next, remove the power cord just in case - it's an important safety measure.

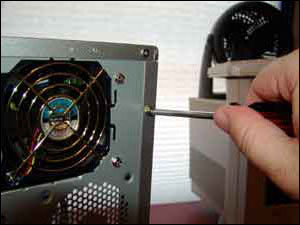

Remove the case screws

3. Now find and remove the screws holding the case together.

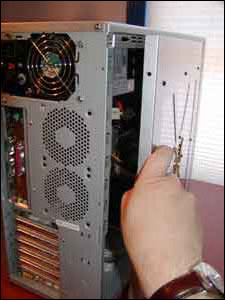

Remove the case cover

4. Next, remove the case cover or panel from your PC.

Remove the drive cover

5. Find the 5.25-inch external drive cover. That's where the drive will be installed. Remove the cover.

Set the jumpers

6. Before sliding the drive into the drive bay, use the jumpers to set the drive to be either a master or slave. If the drive will reside on its own IDE cable, select the master setting. If the drive will be added to an existing IDE cable, choose slave.

Attach the rails

7. Note: if your drive bay requires slide rails, attach the drive rails onto the sides of the drives.

Slide the drive into the bay

8. Next, slide the drive into the drive bay.

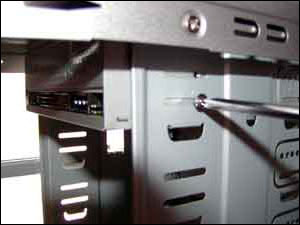

Attach the drive

9. If the case does not use drive rails, attach the drive to the bay using screws.

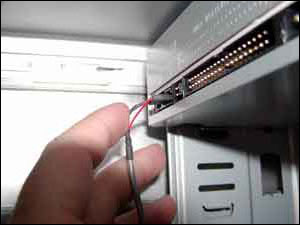

Attach the CD end of the audio cable

10. Attach the CD-Audio cable to the connector on the drive.

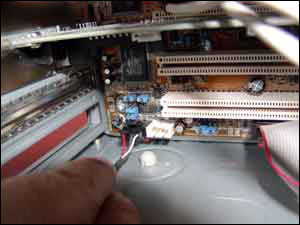

Attach the motherboard end of the audio cable

11. Attach the other end of the CD-Audio cable to the motherboard or audio card.

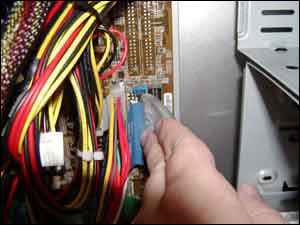

Attach the motherboard end of the IDE cable

12. Next, plug the IDE cable into the motherboard, if one isn't already in place.

Attach the drive end of the IDE cable

13. Plug the drive connector of the IDE cable into the drive.

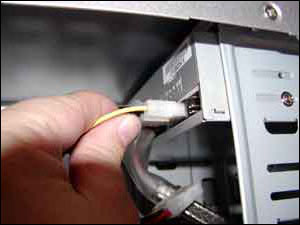

Attach the power connector

14. Attach the 4-pin power adapter in the drive.

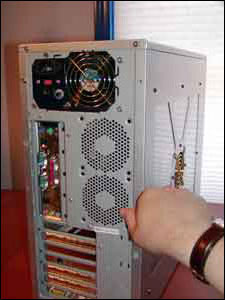

Replace the case cover

15. Replace the case cover or panel.

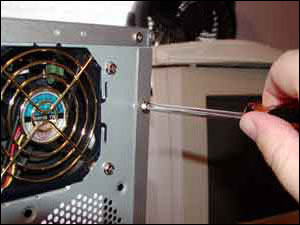

Replace the cover screws

16. Attach the case cover or panel with the screws.

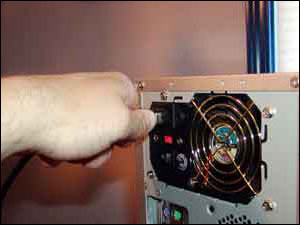

Attach the power cord

17. Reattach the power cord to the computer.

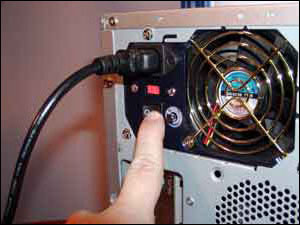

Turn the power on

18. Finally, turn the power switch on the power supply back on.

Now your drive is installed (physically) into your computer. When you power up the system, it should detect the new drive.
