A WLAN using more than one AP [that is, an ESS (Extended Service Set) WLAN] requires careful planning to prevent the APs from interfering with one another while still servicing a desired coverage area. Specifically, an overlap of coverage between APs should exist to allow uninterrupted roaming from one WLAN cell (which is the coverage area provided by an AP) to another. However, those overlapping coverage areas should not use overlapping frequencies.
Figure 12-9 Coverage Overlap in Coverage Areas for Nonoverlapping Channels
Figure 12-9 shows how nonoverlapping channels in the 2.4GHz band can have overlapping coverage areas to provide seamless roaming between AP coverage areas. A common WLAN design recommendation is to have 10% to 15% overlap of coverage between adjoining cells.

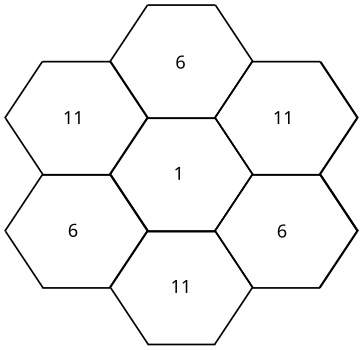

Figure 12-10 Nonoverlapping Coverage Cells for the 2.4GHz Band
If a WLAN has more than three APs, the APs are deployed in a honeycomb fashion to allow an overlap of AP coverage areas while avoiding an overlap of identical channels. The example in Figure 12-10 shows an approach to channel selection for adjoining cells in the 2.4GHz band. Notice that cells using the same nonoverlapping channels (channels 1, 6, and 11) are separated by another cell. For example, notice that none of the cells using channel 11 overlap another cell using channel 11.
Note: Although a honeycomb channel assignment scheme can be used for the 5GHz band, identical channels should be separated by at least two cells rather than by a single cell, as shown in figure 12-10 for the 2,4GHz band.
