AMD's Phenom Processor

Phenom X3 processor

AMD released the first Phenom processor in 2007. Unlike Intel's Core 2 Quad processors, which are a multi-chip module (MCM) design, AMD's Phenom processors had all cores on the same silicon die.

Phenom Processor Models

ModelReleasedCode nameProcessCoresClock rate
X4Mar 2008Agena65mn41.8 to 2.6 GHz
X3Mar 2008Toliman65nm32.1 to 2.5 GHz
X2Dec 2008Kuma65nm21.9 to 2.3 GHz

Phenom X4 Features

4 AMD K10 cores
L1 cache: 64 KB data + 64 KB instruction per core
L2 cache: 512 KB per core
L3 cache: 2 MB shared between cores
Memory controller: dual channel DDR2-1066 MHz
MMX, Extended 3DNow!, SSE, SSE2, SSE3, SSE4a, AMD64, Cool'n'Quiet, NX bit, AMD-V
Socket AM2+, HyperTransport with 1600 to 2000 MHz
Power consumption (TDP): 65, 95, 125 and 140 Watt
Clock rate: 1800 to 2600 MHz
Models: Phenom X4 9100e to 9950

Phenom X3 Features

3 AMD K10 cores
L1 cache: 64 KB data and 64 KB instruction per core
L2 cache: 512 KB per core
L3 cache: 2 MB shared between cores
Memory controller: dual channel DDR2-1066 MHz
MMX, Extended 3DNow!, SSE, SSE2, SSE3, SSE4a, AMD64, Cool'n'Quiet, NX bit, AMD-V
Socket AM2+, HyperTransport with 1600 to 1800 MHz
Power consumption (TDP): 65 and 95 Watt
Clock rate: 2100 to 2500 MHz
Models: Phenom X3 8250e to 8850

Phenom X2 Features

2 AMD K10 cores
L2 cache 512 KB per core
L3 cache 2MB shared between cores
Power consumption (TDP): 45 Watt
Clock rate: 1900 to 3200 MHz
Models: Phenom X2 6400 to 6600

Not much is known about the Phenom X2 because AMD discontinued the model immediately after release. AMD never communicated the reason for discontinuation, speculation is that the model couldn't generate sufficient revenue or that the Phenom II processor was scheduled for release in late 2008.

Phenom II Processor

The Phenom II is AMD's successor to the original Phenom. They are multi-core processors using a 45nm manufacturing process and the AMD K10 microarchitecture.

Phenom II processor

Phenom II Processor Models

ModelProcessCoresClock rate
X6 1090T45nm63.2 GHz
X6 1055T45nm62.8 GHz
X4 96545nm43.4 GHz
X4 95545nm43.2 GHz
X4 94545nm43.0 GHz

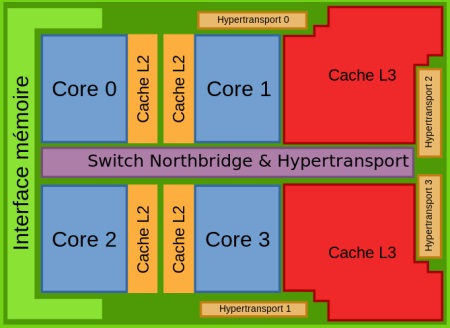

Phenom II block diagram

The Phenom II X4 series has 4 cores on a single die. Each core is equipped with 512K L2 cache, and all four cores share a 6MB L3 cache.
