An advantage of paging is the possibility of sharing common code, a consideration that is particularly important in an environment with multiple processes. Consider the standard C library, which provides a portion of the system call interface for many versions of UNIX and Linux. On a typical Linux system, most user processes require the standard C library libc. One option is to have each process load its own copy of libc into its address space. If a system has 40 user processes, and the libc library is 2 MB, this would require 80 MB of memory.

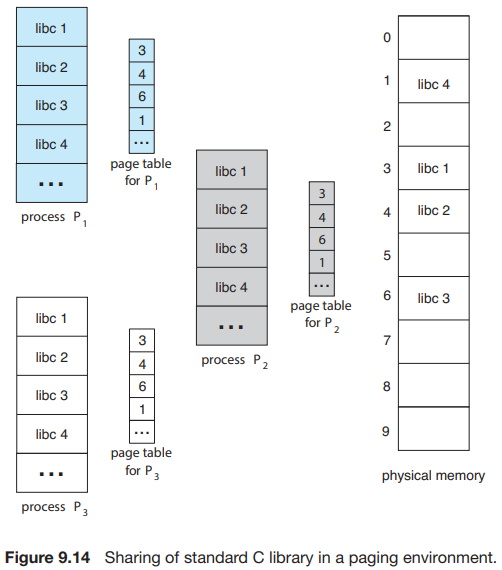

If the code is reentrant code, however, it can be shared, as shown in Figure 9.14. Here, we see three processes sharing the pages for the standard C library libc. (Although the figure shows the libc library occupying four pages, in reality, it would occupy more.) Reentrant code is non-self-modifying code: it never changes during execution. Thus, two or more processes can execute the same code at the same time. Each process has its own copy of registers and data storage to hold the data for the process’s execution. The data for two different processes will, of course, be different. Only one copy of the standard C library need be kept in physical memory, and the page table for each user process maps onto the same physical copy of libc. Thus, to support 40 processes, we need only one copy of the library, and the total space now required is 2 MB instead of 80 MB-a significant saving!

In addition to run-time libraries such as libc, other heavily used programs can also be shared-compilers, window systems, database systems, and so on. The shared libraries are typically implemented with shared pages. To be sharable, the code must be reentrant. The read-only nature of shared code should not be left to the correctness of the code; the operating system should enforce this property.

The sharing of memory among processes on a system is similar to the sharing of the address space of a task by threads. Furthermore shared memory as a method of interprocess communication. Some operating systems implement shared memory using shared pages. Organizing memory according to pages provides numerous benefits in addition to allowing several processes to share the same physical pages.
