Export Inkscape Drawing as an Image
By Stephen Bucaro

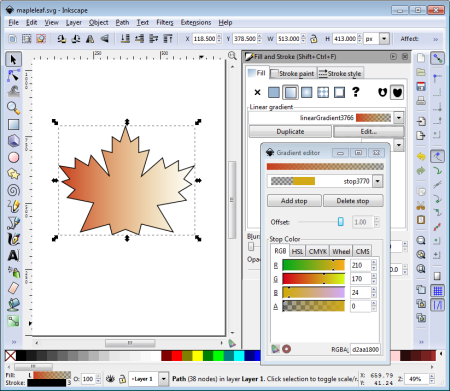

Inkscape is a free Open Source vector graphics
illustration application that works similar to Adobe Illustrator. Unlike a raster graphics drawing
application, a vector graphics editor allows you to use your mouse to edit your image by selecting
and dragging points on the geometrical objects in the image.
Inkscape uses the W3C standard Scalable Vector Graphics (SVG) file format. Although Inkscape drawings
can be embedded in webpages, for most other applications you'll need a raster image format such as .png

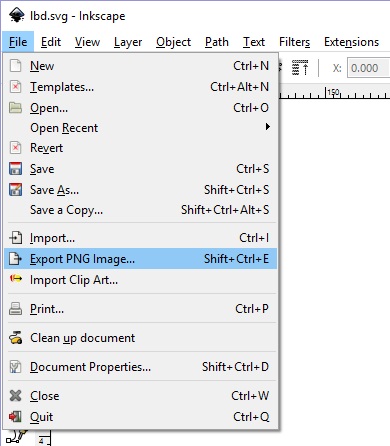

(public network graphic). You can export your drawing in that format by selecting Export PNG image
in the File menu.

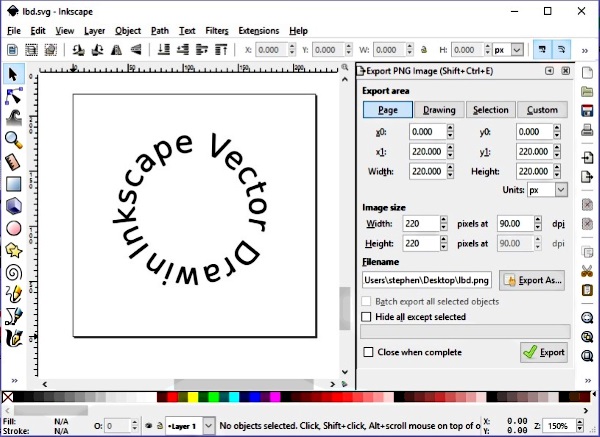

The Export PNG image dialog box will appear. In this dialog box you can enter the coordinates of
the part of the drawing that you want to export as an image. The easiest way to export an image is export
the page as an image. Click on the [Page] button, then in the Filename text box enter the path and
filename you want the image saved to. Also make sure the Image size spin boxes are set to the size
of the page, which you can determine by selecting Document Properties... in the File menu.
When all the information is set, click on the [Export] button. The image file will appear at the location
you have specified. If .png file format is not what you want, you'll need to use a paint program to convert
the file to the desired format.
